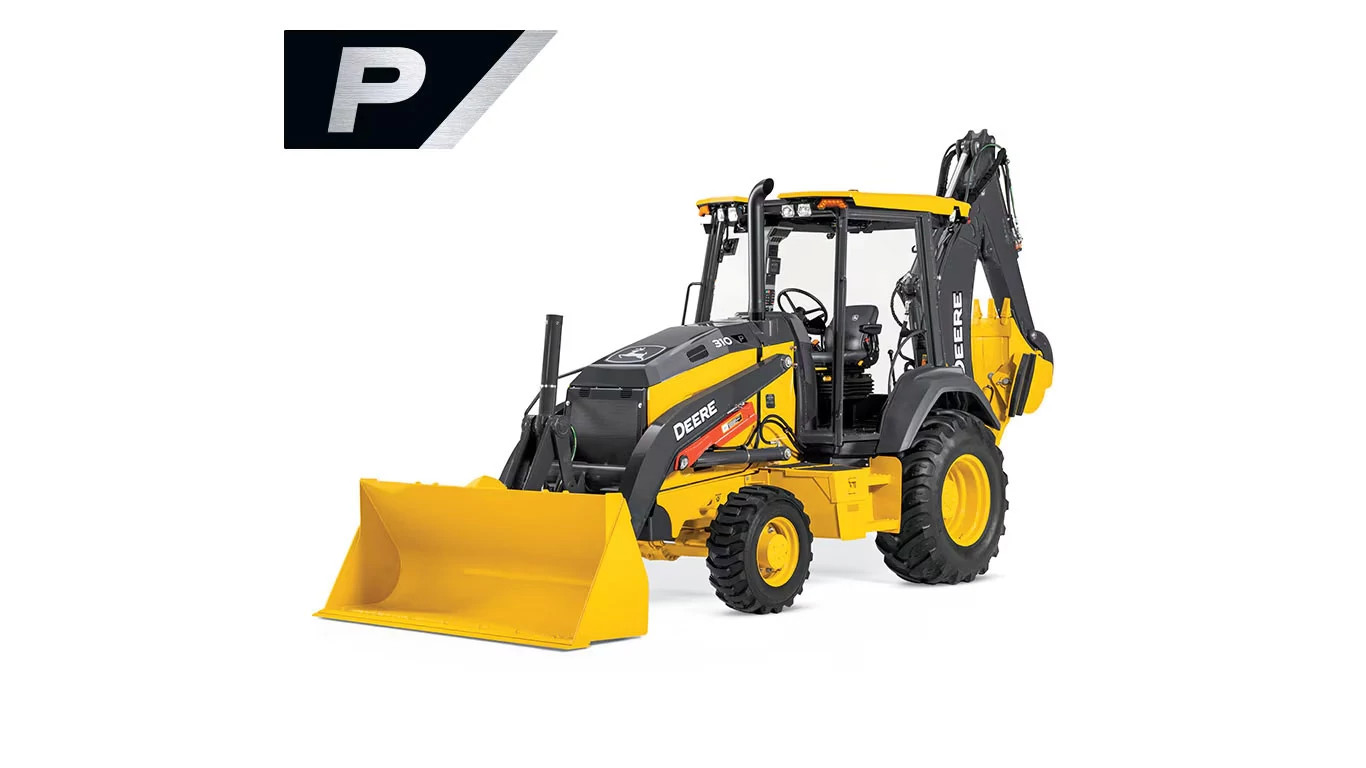

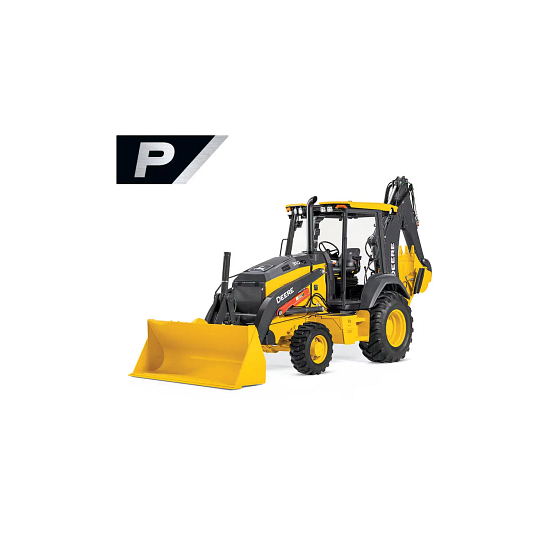

Name: John Deere- 310 P-Tier
Brand: John Deere
SKU: 310PBH

Explore the 310 P-Tier backhoe loader with FT4 emission-certified engine, clutchless gear changes, and redesigned pilot tower.  View more features and specifications.

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/backhoes/310_p/310_p_mfwd_front_axle_450x300.jpg" alt="Mechanical Front Wheel Drive (MFWD) front axle">
    <span class="caption">Mechanical Front Wheel Drive (MFWD) front axle</span>
   </div>
  </div>
  <h5>Overview</h5>
  <div class="seccion-images"></div>
  <p>Mechanical Front Wheel Drive (MFWD) with limited slip differential.&nbsp; The main MFWD on/off control is mounted on the RH console.&nbsp;&nbsp;&nbsp;</p>
  <ul>
   <li>Limited slip front axle delivers 65% of available power to the tire with the best traction for true all-wheel-drive pulling power.</li>
   <li>Completely sealed axle has no breathers to maintain or service, promoting reliability (axle breathers can be susceptible to water and/or dirt intrusion).</li>
   <li>The machine will automatically disable the MFWD in 4<sup>th</sup> gear to reduce tire wear.&nbsp;</li>
   <li>Extend tire tread life with Momentary MFWD for ‘on the fly’ activation.&nbsp; Controlled with a touch of a button on the loader lever.&nbsp;&nbsp; Great for engaging a pile or briefly powering through sticky or slippery terrain.&nbsp;</li>
  </ul>

Ability to work in wet and muddy conditions

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/backhoes/310_p/310_p_powershift_transmission_272x308.jpg" alt="Powershift™ transmission">
    <span class="caption">Powershift™ transmission</span>
   </div>
  </div>
  <h5>Overview</h5>
  <div class="seccion-images"></div>
  <p>John Deere continues with its PowerShift™ Transmission and can be manually shifted by use of the transmission control lever.&nbsp; 4 forward, 2 reverse gears.</p>
  <ul>
   <li>Heavy duty transmission oil filter standard on all machines for increased reliability</li>
   <li>Hydraulically actuated clutch packs for smooth shifting and reliable performance under all operating conditions and loads</li>
   <li>Easy to reach twist grip Transmission Control Lever (TCL)</li>
   <li>More control at your fingertips. Repetitive tasks like shifting and changing direction can be done with one hand, right next to the steering wheel</li>
  </ul>

Easy to use and reliable Powershift&trade; transmission

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/backhoes/310_p/engine_power_tech_ewl_450x319.jpg" alt="John&nbsp;Deere PowerTech™ EWL Engine ">
    <span class="caption">John&nbsp;Deere PowerTech™ EWL Engine </span>
   </div>
  </div>
  <h5>Overview</h5>
  <div class="seccion-images"></div>
  <p>The John Deere PowerTech™ EWL that eliminates the need for a diesel particulate filter (DPF) and exhaust gas recirculation (EGR) system.&nbsp; Underground utility customers will appreciate the increased power, improved torque, and greater reliability compared to the previous design.&nbsp; For models 310 P, 320 P, 410 P, 710 P.&nbsp;</p>
  <ul>
   <li>EPA Final Tier 4 (FT4)/EU Stage IV emission certified.&nbsp;</li>
   <li>3–7 percent net horsepower increase (over Power Tech Plus configuration) with improved torque curve.&nbsp;</li>
   <li>Removal of the exhaust gas recirculation (EGR) system and components (plumbing, cooler, and sensors).&nbsp;&nbsp;</li>
   <li>Simpler two-valve cylinder-head design. Redesigned and improved fuel-filter location enables easy access when changing filters.&nbsp;</li>
   <li>Does not require a DPF, reducing maintenance costs on the aftertreatment system.</li>
  </ul>

Enhanced John&nbsp;Deere 4.5L engine performance and reliability

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/backhoes/310_p/310p_open_center_hydraulics_450x316.jpg" alt="310 P-tier backhoe">
    <span class="caption">310 P-tier backhoe</span>
   </div>
  </div>
  <h5>Overview</h5>
  <div class="seccion-images"></div>
  <p>The open center control valve and pump combination has been used on Deere backhoes since 1997.&nbsp; This field-proven system has served the product well over its lifetime, providing such benefits as high contamination tolerance, excellent swing control, open center pressure/force control, operator “feel”, and excellent multifunction performance as compared to other open center systems in the marketplace.&nbsp;&nbsp;&nbsp;</p>
  <p><br>The 310 P is configured with a single gear pump (28 GPM).&nbsp;</p>
  <ul>
   <li>Very efficient system type for high productivity digging application.&nbsp;&nbsp;&nbsp;</li>
   <li>Continuous oil flow for cooling and filtration, even with all functions in neutral.&nbsp; Cleaner, cooler oil means improved system life and less downtime.&nbsp;&nbsp;&nbsp;</li>
   <li>Inherent load feedback to the operator.&nbsp; Lever position with an open center system delivers a certain force level to the cylinder.&nbsp; Open center can provide a level of “feel” for experienced operators when fine metering through the cut searching for an object in the ground.&nbsp;</li>
  </ul>

Field proven and durable open center hydraulics

A close-up of an operator using the 310P-Tier Backhoe to scoop dirt.

A 310P Backhoe dumping dirt from the bucket.

4Rivers Equipment construction, John Deere, 310 P Tier, Backhoe,

4Rivers Equipment | construction | John Deere | 310 P Tier Backhoe

DRIVELINE

Engine Manufacturer

Engine Model

Displacement, ltr (Inches³)

Rated Speed, rpm

Engine Output - Net, kW (hp)

Transmission Type

Service Brake Type

Service Brake Actuation

DIMENSIONS

Max length with std. Stick, mm (ft/in)

Height over ext Stick, mm (ft/in)

Width over tires, mm (ft/in)

Wheelbase - 4WD, mm (ft/in)

Ground Clearance, mm (inches)

Width - General Purpose Bucket, mm (ft/in)

Bucket Rotation - Position 1, Degrees

Bucket Pin Height - General Purpose, mm (ft/in)

Dump Height - General Purpose, mm (ft/in)

Dump Reach - General Purpose, mm (inches)

Digging Depth - General Purpose, mm (inches)

CAPACITIES

Fuel Tank, ltr (gallons (US))

Hydraulic Tank, ltr (gallons (US))

Bucket Capacity - Standard General Purpose, m³ (yd³)

Bucket Tearout - Non-Extending Dipper, kN (lbf)

Stick tearout, kN (lbf)

Bucket Breakout - General Purpose, kN (lbf)

Lift To Full Height - General Purpose Bucket, kg (lbs)

Pump

WEIGHTS

Operating Weight, kg (lbs)
