Name: John Deere- 210 G-Tier
Brand: John Deere
SKU: 210GTL

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/tractor_loader/r4j012992engine_g_450x301.jpg" alt="3.3L Yanmar Engine ">
    <span class="caption">3.3L Yanmar Engine </span>
   </div>
  </div>
  <p>The proven history with the Yanmar 3.3 L (201 cu in.) engine allows Deere to confidently integrate it in to the 210 G-Tier tractor loader. This 51 kW (69 net peak hp), Interim Tier 4 engine complies with EPA FT4 emission regulations.</p>
  <ul>
   <li>No external emissions aftertreatment components</li>
   <li>Minimal complexity</li>
   <li>Less parts to maintain</li>
  </ul>
  <p>The 210 G uses a variable rate, temperature controlled (viscous) cooling fan. Since the fan slows when high power is not needed, the machine gains horsepower and torque for better engine performance and efficiency.&nbsp;&nbsp;</p>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/tractor_loader/210g_6_450x450.jpg" alt="Variable rate, viscous cooling fan">
    <span class="caption">Variable rate, viscous cooling fan</span>
   </div>
  </div>

Highly reliable and efficient Yanmar&reg; 3.3L engine

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/tractor_loader/axel_pic4_398x450.jpg" alt="PowerShift™ Transmission">
    <span class="caption">PowerShift™ Transmission</span>
   </div>
  </div>
  <p>PowerShift™ Transmission and can be manually shifted by use of the transmission control lever.&nbsp; 4 forward, 2 reverse gears.</p>
  <ul>
   <li>Heavy duty transmission oil filter comes standard</li>
   <li>Smooth shifting and reliable performance under all operating conditions and loads&nbsp;</li>
   <li>Easy to reach twist grip Transmission Control Lever (TCL)</li>
   <li>Repetitive tasks like shifting and changing direction can be done with one hand, right next to the steering wheel</li>
  </ul>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/tractor_loader/r4f000403_axel_450x300.jpg" alt="Transmission Control Lever (TCL)">
    <span class="caption">Transmission Control Lever (TCL)</span>
   </div>
  </div>

Easy to use, reliable PowerShift™ transmission

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/tractor_loader/r4j012912_axels_450x300.jpg" alt="MFWD Front Axle">
    <span class="caption">MFWD Front Axle</span>
   </div>
  </div>
  <p>Mechanical Front Wheel Drive (MFWD) with open differential is the standard configuration for all tractor loaders.&nbsp; The main MFWD on/off control is mounted on the front console.&nbsp;&nbsp;</p>
  <ul>
   <li>Completely sealed axle has no breathers to maintain or service, promoting reliability (axle breathers can be susceptible to water and/or dirt intrusion)</li>
   <li>The machine will automatically disable the MFWD in 4th gear to reduce tire wear</li>
   <li>Extend tire tread life with Momentary MFWD for ‘on the fly’ activation.&nbsp; Controlled with a touch of a button on the loader lever (if equipped).&nbsp;&nbsp; Great for engaging a pile or briefly powering through sticky or slippery terrain.&nbsp;</li>
  </ul>
  <p>Optional Mechanical Front Wheel Drive (MFWD) with limited slip differential is available.&nbsp;</p>

Ability to work in wet and muddy conditions

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/tractor_loader/r4f098758_grade_tech_300x450.jpg" alt="Single mast grade control ready">
    <span class="caption">Single mast grade control ready</span>
   </div>
  </div>
  <p>John&nbsp;Deere™ tractor loaders have the option for a factory installed Grade Control Ready package which includes the base components needed for using a 2D or 3D grade technology system to control the box blade lift and tilt cylinders. Once the machine is received at the dealership, this option is then completed with a dealer supplied Top Con, Trimble, or Leica technology finishing kit.</p>
  <ul>
   <li>Accepts your preferred provider for grade control.</li>
   <li>Can facilitate dual mast or single mast plus slope sensor setup</li>
   <li>No hydraulic hose disconnections or bracket welding required for reduced dealer machine set-up.</li>
   <li>Allow the operator to complete finish grading, faster, easier, and with greater accuracy.</li>
   <li>Manual control and operation of the box blade is not affected when the grade technology is turned off.</li>
  </ul>
  <p>Optional factory installed grade indicate is also available and provides an onboard read-out within the machine’s existing monitor that displays the cross slope (roll) and mainfall slope (pitch) of the machine within +/- 0.5% accuracy. This feature is indicate-only as reference to the operator.&nbsp;</p>
  <h5>Benefits </h5>
  <div class="seccion-images"></div>
  <ul>
   <li>Easy to use; entry-level technology for value-oriented customers.</li>
   <li>No special hardware or software required (beyond what is included on machine with the option)</li>
   <li>Real-time interface within the machine’s existing display screen</li>
   <li>Roll and Pitch viewable through the display as either “Absolute” value or “Relative” value and in degrees or percent.</li>
  </ul>
  <p>&nbsp;</p>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/tractor_loader/grade_tech_picture10_389x450.jpg" alt="Grade indicate screen">
    <span class="caption">Grade indicate screen</span>
   </div>
  </div>

Boost productivity and eliminate rework with Grade Technology

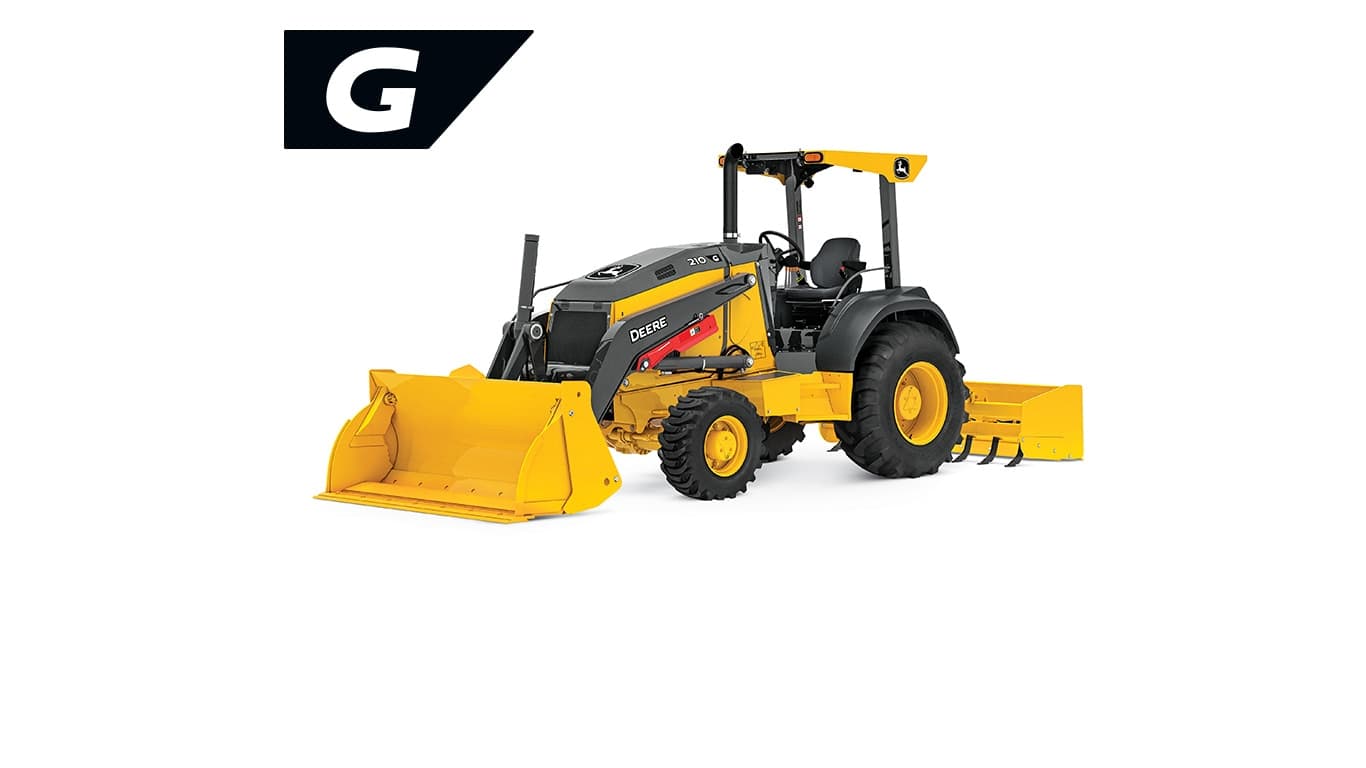

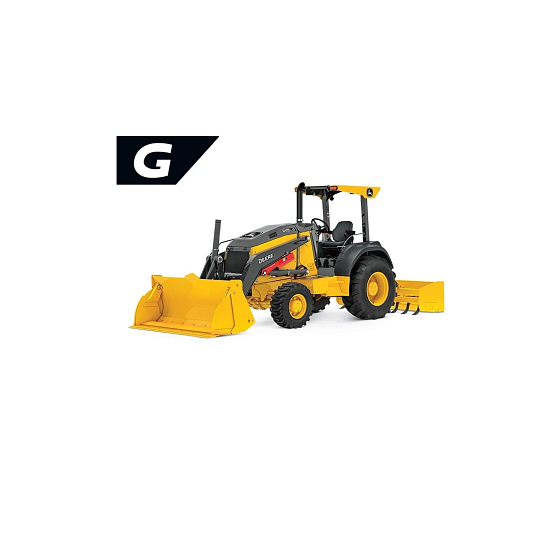

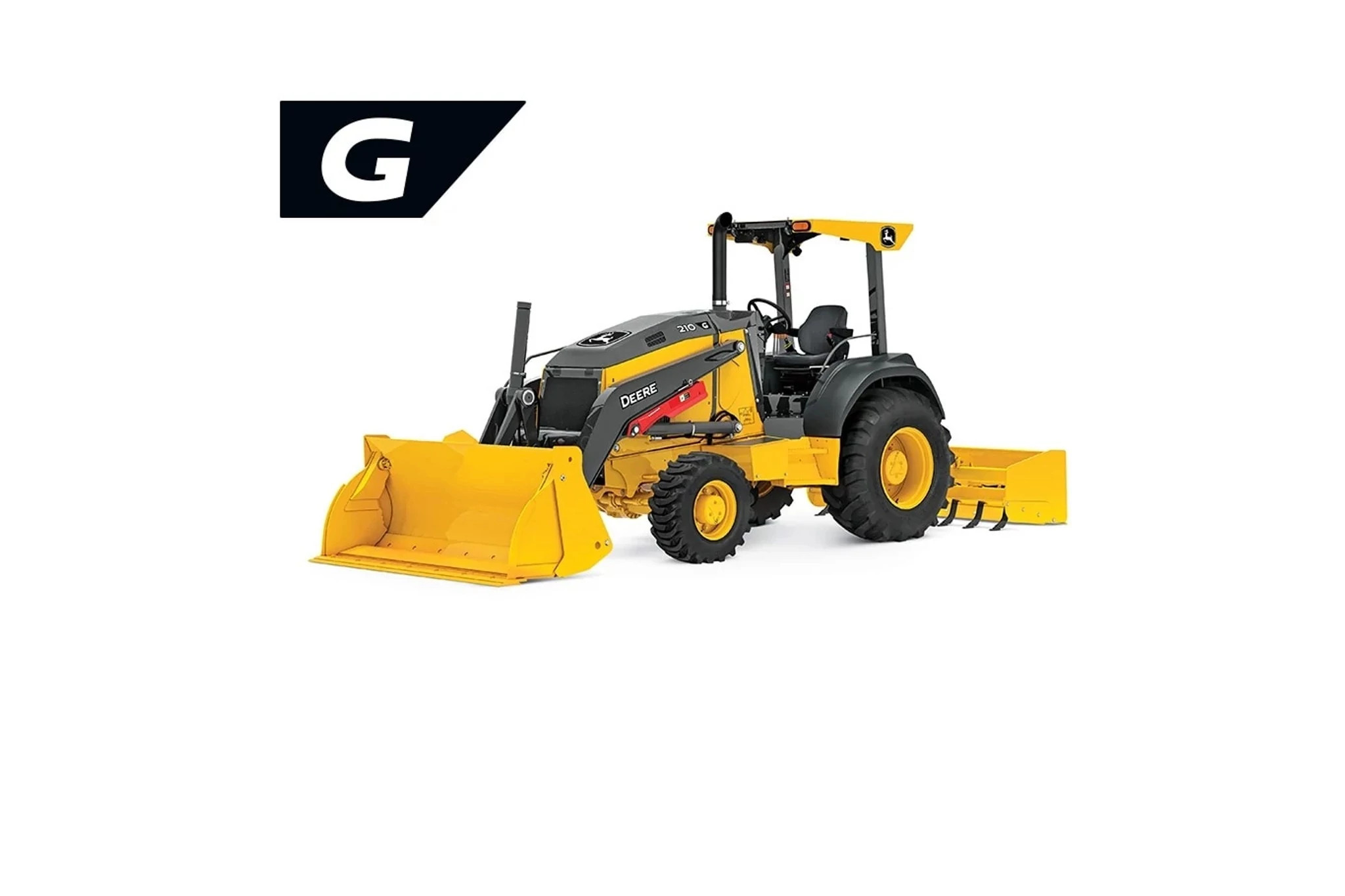

210 G-Tier tractor loader on white background

4Rivers Equipment construction, John Deere, 210 G Tier, Backhoe, The economical 210 G Tier is capable of a wide variety of tasks. View 210 G Tier Tractor Loaders features, specifications and download a brochure.

4Rivers Equipment | construction | John Deere | 210 G Tier Backhoe

DRIVELINE

Engine manufacturer

Engine model

Displacement, ltr (Inches³)

Rated speed, rpm

Net output, kW (hp)

Transmission type

Number of speeds - forward

Number of speeds - reverse

Front axle type

Service type

Service actuation

DIMENSIONS

Overall length, mm (ft/in)

Minimum transport height, mm (ft/in)

Overall width, mm (ft/in)

Std shovel width, mm (inches)

Dump Clearance @ 45 deg, mm (ft/in)

Dump Reach, mm (inches)

Bucket Hinge Pin - Max Height, mm (ft/in)

Coupler

CAPACITIES

Fuel tank capacity, ltr (gallons (US))

Hydraulic tank capacity, ltr (gallons (US))

Shovel cap SAE heaped, m³ (yd³)

Alternator capacity, Amp

PERFORMANCE

Max. Forward Speed, kph (mph)

Max. Reverse Speed, kph (mph)

Lift Capacity to Full Height, kg (lbs)

Oscillation angle, ± Degrees

Power Take Off

Breakout force std shovel, kN (lbf)

System voltage, V

Pump type

Pump flow, lt/min (gallons (US) / min)

System pressure, bar (PSI)

WEIGHTS

Operating weight, kg (lbs)

The economical 210 G-Tier is capable of a wide variety of tasks. View 210 G-Tier Tractor Loaders features, specifications and download a brochure.
