Name: John Deere- 1812DC
Brand: John Deere
SKU: 1812ct8

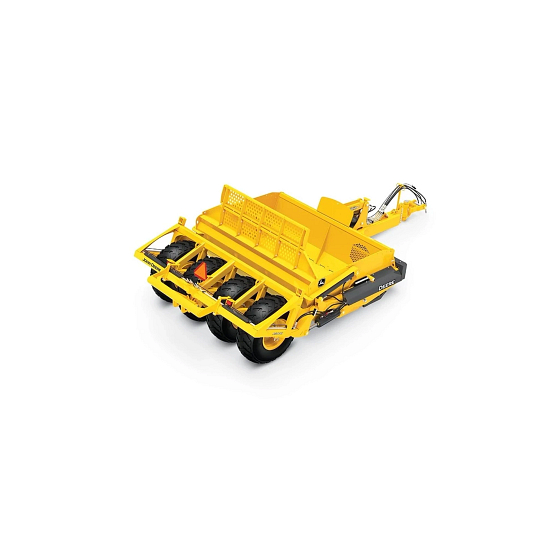

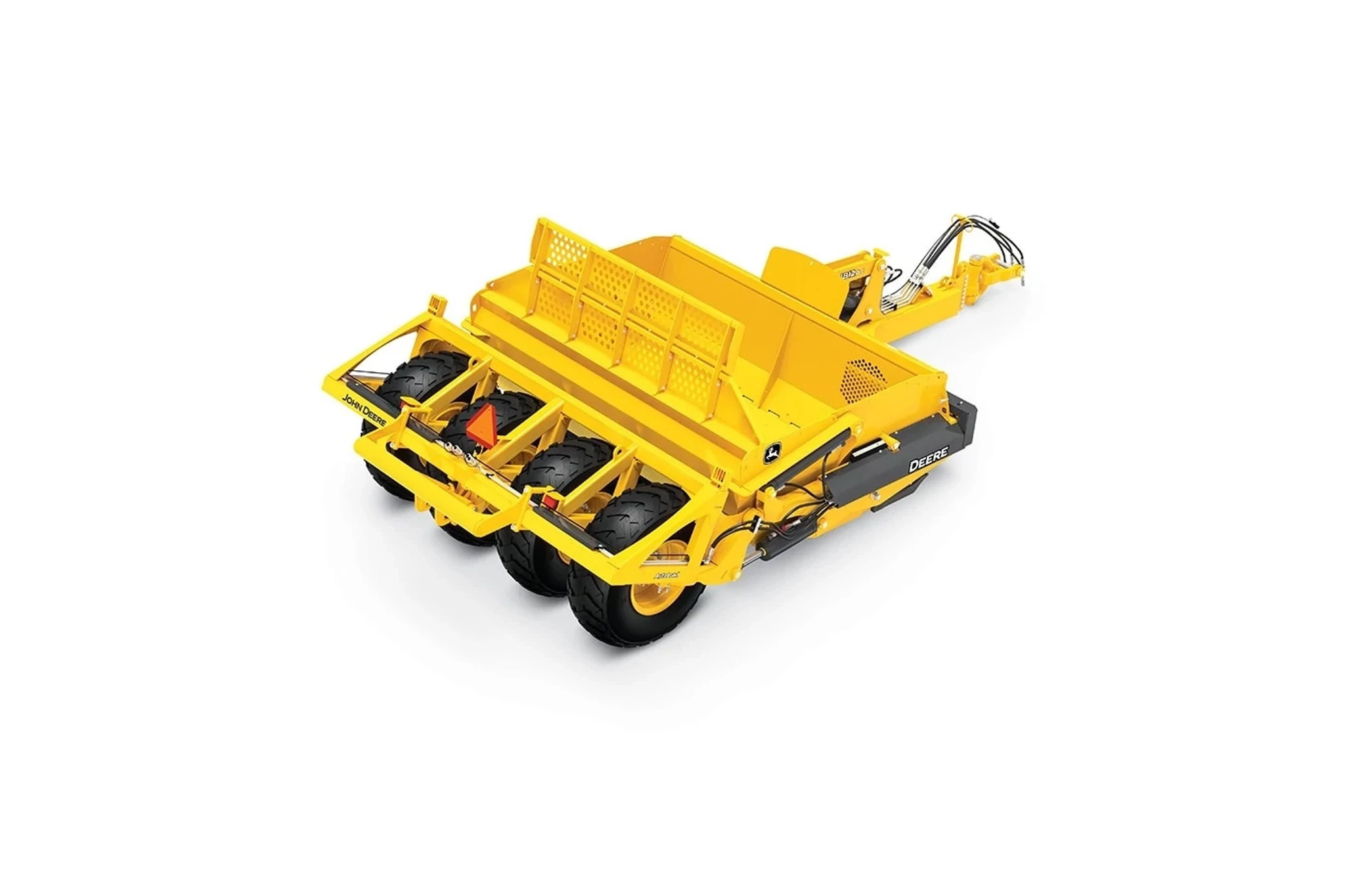

The 1812DC Carry-All Scraper is a four-tire scraper that works well for construction contractors bulk-hauling materials using 360-hp to 575-hp tractors. View all features and download a brochure.

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/earthmoving/new_pics/autoload_example.jpg" alt="Manual loading (left) vs. AutoLoad (right)">
    <span class="caption">Manual loading (left) vs. AutoLoad (right)</span>
   </div>
  </div>
  <div class="seccion-images"></div>
  <p>An innovation in the earthmoving industry exclusive to John Deere, the AutoLoad feature allows novice and experienced operators alike to be consistently productive while operating John Deere tractors and scrapers with the touch of a button, even if they have never operated tractors and scrapers before. AutoLoad is now easier than ever with the new set up wizard featured on 9R Series Scraper Specials.</p>

AutoLoad&trade; for smooth loading and efficient operation

<h5>Precision level custom land formations to better manage water</h5>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/earthmoving/igrade.jpg" alt="iGrade">
    <span class="caption">iGrade</span>
   </div>
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/spacer.gif" alt="#">
   </div>
  </div>
  <p>The iGrade controller enables and automates new water management applications, as well as&nbsp;John&nbsp;Deere's&nbsp;existing water management tool, Surface Water Pro™ Plus. iGrade offers the ability to generate a basic plane and grade, as well as perform distance-based tasks – all while automatically controlling the height of the scraper blade.</p>
  <p>&nbsp;</p>
  <p>iGrade provides four applications to complete different tasks:</p>
  <ul>
   <li>Surface Water Pro Plus automation</li>
   <li>Grade control</li>
   <li>Distance trip</li>
   <li>Plane control</li>
  </ul>
  <p>The iGrade controller works with many of the different John Deere Ag Management Solutions (AMS) components producers may already own, such as:</p>
  <ul>
   <li>GreenStar™ 3 (GS3) 2630 Display</li>
   <li>GreenStar 2 (GS2) 2600 Display</li>
   <li>StarFire™ iTC receiver</li>
   <li>StarFire 3000 Receiver</li>
   <li>AutoTrac™</li>
   <li>Surface Water Pro Plus</li>
  </ul>
  <p>iGrade is approved for the following platforms:</p>
  <ul>
   <li>9 and 8 Family Wheel Tractors</li>
   <li>9 and 8 Family Track Tractors</li>
   <li>Any selective control valve (SCV) operated water-management implement approved for the above John&nbsp;Deere tractors</li>
  </ul>
  <p><em>NOTE:</em>&nbsp;<em>iGrade requires&nbsp;the&nbsp;receiver to have an real-time kinetic (RTK) signal level. iGrade does not support wide area augmentation system (WAAS), EGNOS,&nbsp;SF1, or SF2 signal levels. The John Deere Application Controller is required for iGrade activation.</em></p>

Automate water management with iGrade&trade;

<h5>John Deere scraper systems in construction</h5>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/earthmoving/r4a054108_top_loading_large_scale.jpg" alt="Top-loading large-scale commercial construction">
    <span class="caption">Top-loading large-scale commercial construction</span>
   </div>
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/clearpix.gif" alt="#">
   </div>
  </div>
  <p>&nbsp;</p>
  <p>In both large- and small-scale jobs for commercial and residential applications, John Deere scraper systems shine. With capacities ranging from 11.5 to 18.3 m³(15 to 24 cu yd) and single cycle payloads of up to 55 m³ (72 cu yd), John Deere scrapers are versatile enough for contractors who work in a broad range of job types. John Deere scrapers really shine in highway construction and other infrastructure development projects where long cuts and fills at high volumes are common.</p>
  <p>&nbsp;</p>
  <p>John Deere scrapers are a valuable part of any construction fleet, whether as the primary mover or a complement to other equipment. Scrapers excavate, carry, spread, and grade material, making it the most efficient and versatile machine on any job site.</p>
  <h5>Agricultural applications</h5>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/earthmoving/new_pics/igrade_land_leveling.jpg" alt="Precision leveling farm land with iGrade™">
    <span class="caption">Precision leveling farm land with iGrade™</span>
   </div>
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/clearpix.gif" alt="#">
   </div>
  </div>
  <p>John Deere scraper systems are not just for precision land leveling. A sophisticated suite of precision agriculture products are offered, including&nbsp;<a href="/docs/sales/salesmanual/en_NA/earthmoving/2014/feature/shared/igrade.html">iGrade</a>&nbsp;for land leveling and Surface Water Pro™&nbsp;Plus for ditching and levee building.</p>
  <p>&nbsp;</p>
  <p>The scrapers are also perfect for cattle feed lot maintenance, grain bin foundations, waterway topsoil reclamation, commercial ponds, and much more. Anywhere material needs to be moved, John Deere scrapers provide a solution that can excavate, carry, and grade material with one operator, one implement, and one tractor. This gives the grower or contractor a level of efficiency that cannot be achieved with most traditional construction equipment.</p>
  <h5>Mining applications</h5>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/earthmoving/coal_mining_scraper.jpg" alt="Scrapers hauling coal">
    <span class="caption">Scrapers hauling coal</span>
   </div>
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/earthmoving/r4d066069_stripping_overburden.jpg" alt="Stripping overburden">
    <span class="caption">Stripping overburden</span>
   </div>
  </div>
  <p>Just as contractors have adopted scrapers for their exemplary cost and productivity, miners look for greater efficiency when moving dirt or mined material. Scrapers are an excellent way to strip and reclaim overburden in pit mines or to&nbsp;simply haul stockpiled mined material such as coal.</p>
  <p>&nbsp;</p>
  <p>John Deere scrapers are built to handle the most unique materials – nimble enough to handle light materials like coal yet rugged enough for heavier materials like wet sea salt.</p>
  <h5>Waste management applications</h5>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/earthmoving/landfill_pic.jpg" alt="Descending a landfill with a single ejector">
    <span class="caption">Descending a landfill with a single ejector</span>
   </div>
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/spacer.gif" alt="#">
   </div>
  </div>
  <p>John Deere scraper systems are perfect for building and covering landfill cells in waste management applications. Waste management companies have experienced tremendous savings by trading in their trucks and excavators for the John Deere scraper system.</p>
  <p>&nbsp;</p>
  <p>Scrapers not only do a great job of creating a cell, but their ability to spread material on grade make it ideal for covering waste. The gang of tires compact the material as it is unloaded and will not prematurely degrade haul roads. The scraper’s heavy-duty, rock-lug tires can handle the hazardous conditions found in a landfill. When heavy-garbage trucks deteriorate the offloading ramp, use the scraper blade to grade and rebuild it.</p>

Versatile and productive in a number of applications

<h5>Maximize productivity, minimize costs with the John Deere scraper system</h5>
  <div class="seccion-images"></div>
  <p>Throughout the world, contractors have been moving material with self-propelled scrapers or rigid/articulated trucks and excavators. John Deere scraper tractors and scrapers are a valuable solution for contractors, allowing them to move the same material as they did with conventional earthmoving systems, but using only half the labor, one-third the investment, for savings of up to 50 cents per cubic yard.</p>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/earthmoving/r4a054226_scraper_system.jpg" alt="The John Deere scraper system">
    <span class="caption">The John Deere scraper system</span>
   </div>
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/clearpix.gif" alt="#">
   </div>
  </div>
  <p><strong></strong></p>
  <p><strong>Half the labor&nbsp;</strong></p>
  <p><strong><br></strong>The John Deere scraper system is an independent earthmoving system requiring one operator to load, transport, and spread material to grade on a job site. Self-propelled scraper and truck/excavator earthmoving systems need additional support equipment to assist with loading and spreading the materials, increasing labor requirements.</p>
  <p><br><strong>One-third the investment</strong></p>
  <p>&nbsp;</p>
  <p>Compare the purchase price of a John Deere scraper tractor and scrapers to competitive systems. Factor in the labor costs, fuel burn, daily operating expenses of all the equipment used in the system, and it all adds up to about one-third the savings over the life of the equipment.</p>
  <p><br><strong>Saving up to 50 cents per cubic yard</strong></p>
  <p>&nbsp;</p>
  <p>The savings are already adding up with the reduced labor requirements and lower investment costs. Experience additional savings from reduced fuel consumption by having only one tractor engine performing all of the work. Now increase productivity moving more yards per cycle with up to 72 cubic yards in triple configurations.</p>
  <p>&nbsp;</p>
  <p>Some common applications for the John Deere scraper systems are as follows:</p>
  <ul>
   <li>Residential or commercial site preparation</li>
   <li>Highway and infrastructure development</li>
   <li>Mining or quarrying</li>
   <li>Levee and reservoir construction</li>
   <li>Precision leveling and water management practices</li>
   <li>Waste management</li>
  </ul>

Half the labor, one-third the investment - Save up to 50 cents per cu yd

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/earthmoving/r4a054218_top_loading.jpg" alt="Top loading the 2412D E">
    <span class="caption">Top loading the 2412D E</span>
   </div>
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/clearpix.gif" alt="#">
   </div>
  </div>
  <p>John Deere scrapers are designed to handle the harsh conditions of top-loading scrapers. A wide, unobstructed bowl opening and heavily shielded hydraulic lines, cylinders, and components provide a nice target for large excavator buckets. In fact, D Series ejectors feature a swept back overflow spill guard that increases the top loading target by 24% over previous models. When conditions do not allow for direct loading, John Deere scraper systems can provide as much as 72 cubic yards per cycle in top loading capacity with triples.</p>
  <p>&nbsp;</p>
  <p>Top-loading produces a force caused by the weight of the material falling into the scraper. With the scraper sitting on the ground, this force travels into the ground through the frame of the scraper. If the scraper is in the raised position, the force could cause extreme hydraulic pressure spikes, which can severely damage the hydraulic system of the scraper tractor and scraper. During top loading procedure, make sure the scraper blade is lowered and resting on the ground. Top-loading scrapers in the raised position could void the scraper warranty.</p>

Top-loading John Deere scrapers increase productivity for all applications

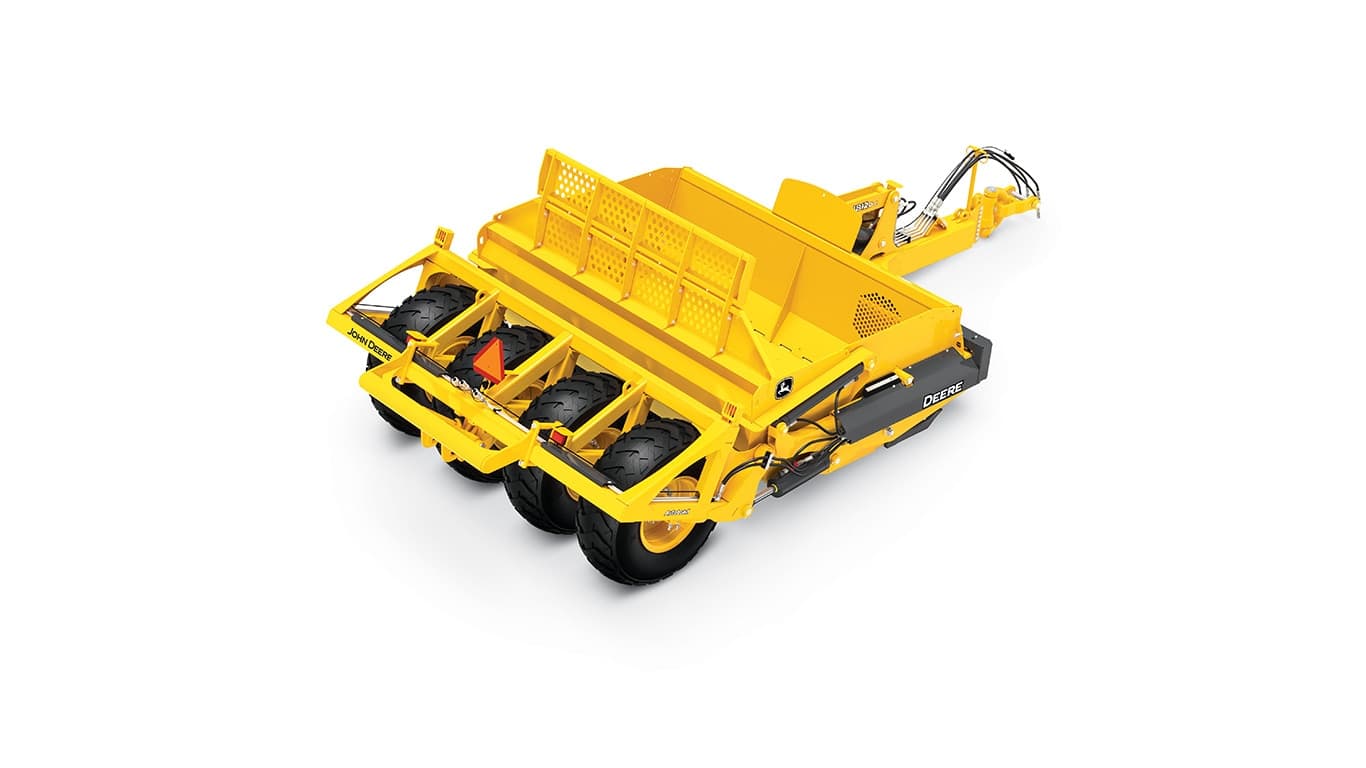

1812DC scraper system on white background
