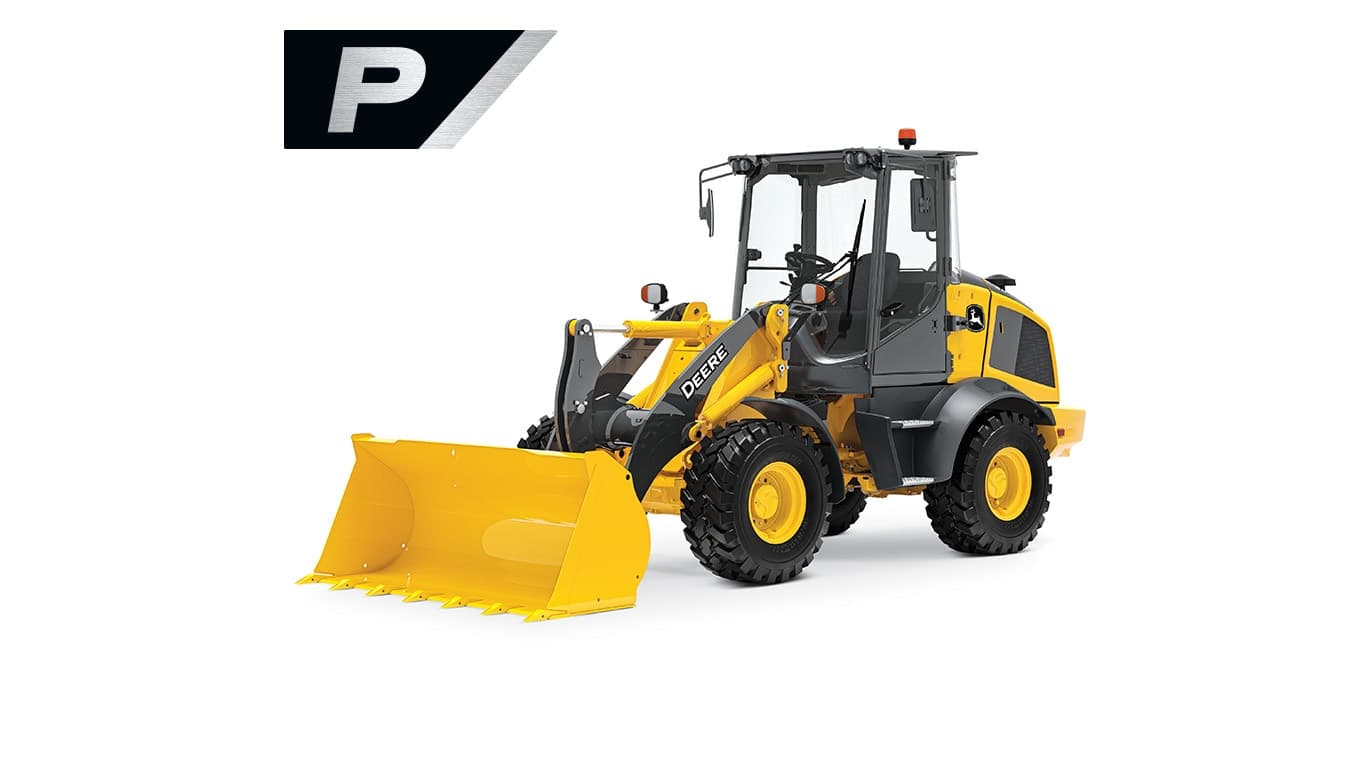

John Deere- 324 P-Tier

  • SHOP
  • /compact-construction
  • /Compact Wheel Loader

Details

CategoryCompact Wheel Loader
MakeJohn Deere
Model324 P-Tier
HoursNew

Additional Information

Description

The 71 hp 324 P-Tier compact loader with 1-2 cubic yard bucket options delivers better load-carrying than previous mini wheel loaders and an optional High-Lift configuration.

Product Overview

  • Net Power: 52 kW (71 hp) at 2,400 rpm
  • Operating Weight: 6400 kg (14,110 lb.)
  • Bucket Capacity: 0.8–1.6 m3 (1.0–2.1 cu. yd.)

Features

Turn Things Around

  • Industry-exclusive Articulation Plus™ steering system combines 30 degrees of articulation with 10 additional degrees of rear-wheel steer. Reduced articulation angle design delivers tighter turns that are more stable, especially with large loads, than comparatively sized loaders without Articulation Plus.

On the Level

  • Loader arm and coupler design improves the lifting path to near parallel — for better load-carrying capability than previous models. This keeps the load more level from ground to truck-bed height and helps the operator focus on the task instead of on making manual adjustments.

Lift, Reach, Repeat

  • With exceptional lift and height to hinge pin, the optional High-Lift configuration makes the 324 P-Tier especially adept at repetitive dumping and stacking applications.

Fast Getaway

  • With a standard top speed of over 23 mph, the 324 P-Tier can make some pretty quick moves on and between jobsites.

Control and Command

  • Low-effort joystick controls boom and bucket, forward-neutral-reverse (F-N-R), and differential lock. Standard mini-joystick controls auxiliary hydraulic functions including optional high flow. Adjustable-height monitor lets operators keep close watch on vital machine functions.

Enjoy the Ride

  • Standard ride control cushions the boom during travel over rough and uneven terrain, reducing material spillage from the bucket and minimizing site cleanup.

Specifications

Disclaimer

Features and specifications are based on published information at the time of publication. Features and specifications are subject to change without notice.

Request Quote
Call For Price4Rivers Price
