Name: John Deere- 30 P-Tier
Brand: John Deere
SKU: 30PEXFT4

At 3.2 metric tons, the 30 P-Tier Reduced-Tail-Swing Excavator fits a variety of jobs big and small. Paired with our mini excavator attachments for even more versatility.

<h5>Overview</h5>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/17_g/attachments.jpg" alt="Quick Coupler System">
    <span class="caption">Quick Coupler System</span>
   </div>
  </div>
  <p>Think of changing attachments as a system. With the quick connect auxiliary couplers and the manual quick coupler for attachments, changeover to the next attachment is quick with minimal downtime. &nbsp;When using hydraulic attachments, the auxiliary selector valve lets you quickly choose between attachment one-way and two-way flows.</p>
  <h5>Benefits</h5>
  <div class="seccion-images"></div>
  <ul>
   <li>The standard selector valve allows the connection of two attachments at the same time. Supply/return oil can be diverted from one to the other by changing the valve position.</li>
   <li>John&nbsp;Deere™ augers can be equipped with numerous sizes of rock, heavy-duty, standard, and tree/shrub bits.</li>
   <li>Hydraulic hammers are perfect for quarry or trench work and concrete removal. Use them to break rock, concrete flatwork, and walls; around rebar; or to a precut line.</li>
   <li>The clamp, sometimes referred to as a thumb, can be used in conjunction with buckets. This aids in the removal of material if it is bulky and does not fit into the bucket completely.</li>
  </ul>
  <h5>Additional details</h5>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/17_g/cb_attachments_2.jpg" alt="Wide variety of buckets and attachments">
    <span class="caption">Wide variety of buckets and attachments</span>
   </div>
  </div>
  <ul>
   <li>Compact excavators use common buckets and attachments that customers who own other John Deere compact machines may already have in their fleets.</li>
  </ul>

Change attachments quickly with mechanical coupler

<h5>Overview</h5>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/26_g/cb_backfill_blade.jpg" alt="Backfill Blade">
    <span class="caption">Backfill Blade</span>
   </div>
  </div>
  <p>Make a sizable impact on your productivity and profitability with the backfill blade. The backfill blade can be used to level and backfill trenches. It is the same width as the undercarriage width. The blade can add versatility by using the blade and bucket to clamp and carry pipe, rocks, or other bulky items. A bolt-on cutting edge is available as optional equipment for the backfill blade.</p>
  <h5>Benefits</h5>
  <div class="seccion-images"></div>
  <ul>
   <li>Backfill blade adds versatility, enabling these compact excavators to grade and fill.</li>
   <li>Provides extra stability with attachments or when working on uneven terrain.</li>
  </ul>

Increase efficiency with standard backfill blade

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/60_g/60g_fuel_saving_power_modes_415x450.jpg" alt="Power modes (30, 35, 50, and 60)">
    <span class="caption">Power modes (30, 35, 50, and 60)</span>
   </div>
  </div>
  <h5>Overview</h5>
  <div class="seccion-images"></div>
  <p>Low daily operating costs with improved fuel economy and economy/power modes. These machines have improved fuel economy over the previous series.</p>
  <h5>Benefits</h5>
  <div class="seccion-images"></div>
  <ul>
   <li>Auto-idle automatically reduces engine speed when hydraulics aren’t in use.</li>
   <li>Auto shutdown further conserves precious fuel.</li>
   <li>Power/economy modes optimize power for digging applications and significantly improve fuel efficiency.</li>
  </ul>

Fuel-Savings with Auto-Idle And Economy Work Mode

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/60_g/60g_operator_comfort_with_larger_cab_304x450.jpg" alt="Operator comfort with larger cab">
    <span class="caption">Operator comfort with larger cab</span>
   </div>
  </div>
  <h5>Overview</h5>
  <div class="seccion-images"></div>
  <p>With large entryways and virtually unrestricted sightlines, the P-tier spacious operator stations deliver all the comfort, convenience, and visibility operators need to bring out their best. Their ergonomically designed operator stations are built to accommodate even larger operators.</p>
  <h5>Benefits</h5>
  <div class="seccion-images"></div>
  <ul>
   <li>Spacious operator stations have wide entryways, making entrance and exit easier than ever</li>
   <li>Optional cab’s front glass is expansive, for exceptional visibility and higher productivity</li>
   <li>An adjustable work light at the top left of the canopy or cab increases job efficiency at night</li>
   <li>A slip resistant entry is provided for safe access to the operator’s seat</li>
   <li>Foldable travel pedals increase foot and leg room</li>
   <li>A suspension seat is standard from the factory</li>
   <li>All controls are conveniently located to the operator’s right include the optional radio.</li>
   <li>Pilot control levers enable an operator to control the boom, bucket, arm, and swing functions.</li>
   <li>Automatic, high-velocity bi-level climate-control system with automotive-style adjustable louvers helps keep the glass clear and the operator comfortable</li>
   <li>Control pattern selector valve is conveniently located in a compartment beneath the seat and includes a sight glass that displays the selected pattern</li>
  </ul>
  <h5>Additional Details</h5>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/60_g/60g_canopy_option_450x426.jpg" alt="Canopy option">
    <span class="caption">Canopy option</span>
   </div>
  </div>
  <ul>
   <li>All canopies and cabs meet the following safety requirements:
    <ul>
     <li>Tip Over Protective Structure (TOPS), Roll Over Protective Structure (ROPS), and Falling Object Protective Structure (FOPS)</li>
    </ul></li>
   <li>The optional cab comes standard with a heater</li>
   <li>Both the cab and canopy units come with a step area for entry and exit</li>
  </ul>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/60_g/60g_automatic_shifting_450x318.jpg" alt="Automatic shifting">
    <span class="caption">Automatic shifting</span>
   </div>
  </div>
  <ul>
   <li>An auto speed change system for high speed travel is employed.</li>
   <li>The turtle speed lock switch will keep the machine in low when propelling.</li>
   <li>The rabbit speed lock will always keep the unit in the higher mode unless a large load is applied to travel like steering changes.</li>
   <li>The machine will then automatically shift to low but return to high when the load is reduced.</li>
  </ul>

A Spacious Cab with A Wide Entryway And Unsurpassed Visibility

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/60_g/60g_serviceability_450x309.jpg" alt="Example of hinged door for easy access serviceability ">
    <span class="caption">Example of hinged door for easy access serviceability </span>
   </div>
  </div>
  <h5>Overview</h5>
  <div class="seccion-images"></div>
  <p>Extended maintenance intervals enable the machine to remain working for longer periods of productive work before the need to service. This greatly increases uptime and productivity of the unit. Hinged door provides wide-open access to the side-by-side oil cooler and radiator. Cooler design resists trash buildup and allows easier core cleanout. Access is quick and convenient.</p>
  <h5>Benefits</h5>
  <div class="seccion-images"></div>
  <ul>
   <li>Extended oil change and greasing intervals contribute to low daily operating costs.</li>
   <li>Oil impregnated bushings allow the unit to extend grease intervals. Not only does it increase the time between greasing of the unit, this greatly reduces the chances of a problem occurring due to improper maintenance causing downtime to the operation.</li>
   <li>The additional service door allows the operator and technician better access to components during daily service checks and routine maintenance for improved uptime.</li>
   <li>No aftertreatment devices needed reducing maintenance and expense.</li>
   <li>Parts and service are available at over 1,400 John&nbsp;Deere™ dealers throughout North America.</li>
   <li>Wet-disc swing brake provides long-term maintenance-free performance.</li>
  </ul>
  <h5>Additional Details</h5>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/60_g/60g_tilt_cab_450x246.jpg" alt="Tilt cab">
    <span class="caption">Tilt cab</span>
   </div>
  </div>
  <ul>
   <li>When maintenance or repair is required, simply use the tilt tool to raise the cab forward to an industry leading 50 degrees. This allows easy access to many components under the floor.</li>
  </ul>

Ground Level Daily Service with Extended Maintenance Intervals

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/60_g/60g_compact_excavator_undercarriage_450x208.jpg" alt="Compact excavator undercarriage">
    <span class="caption">Compact excavator undercarriage</span>
   </div>
  </div>
  <h5>Overview</h5>
  <div class="seccion-images"></div>
  <p>The X-frame undercarriage is similar to that of larger excavators, and it is designed to shed dirt and debris from the track frames. A track adjuster is located in each track frame and can be adjusted using a standard high pressure grease gun.</p>
  <h5>Benefits</h5>
  <div class="seccion-images"></div>
  <ul>
   <li>Track sag adjustment is conveniently located in the center of the frame to maintain proper track tension and maximize undercarriage life.</li>
  </ul>
  <h5>Additional Details</h5>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/60_g/60g_track_sag_adjustment_450x259.jpg" alt="Track sag adjustment">
    <span class="caption">Track sag adjustment</span>
   </div>
  </div>
  <ul>
   <li>A track adjuster is located in each track frame and can be adjusted using a standard high pressure grease gun.</li>
  </ul>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/60_g/60g_multiple_tie_down_locations_450x107.jpg" alt="Multiple tie-down locations">
    <span class="caption">Multiple tie-down locations</span>
   </div>
  </div>
  <ul>
   <li>Tie-downs are provided so loading and transporting of the machine can be done quickly.</li>
   <li>All models have a rear tie down on the rear of the X-frame</li>
  </ul>
  <div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/60_g/60g_rubber_250x189.jpg" alt="Rubber track options">
    <span class="caption">Rubber track options</span>
   </div>
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/60_g/60g_steel_250x189.jpg" alt="Steel track options">
    <span class="caption">Steel track options</span>
   </div>
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/compact_excavators/60_g/60g_rubber_crawler_pads_250x189.jpg" alt="Rubber crawler pads track options">
    <span class="caption">Rubber crawler pads track options</span>
   </div>
  </div>
  <ul>
   <li>Rubber tracks are standard equipment.
    <ul>
     <li>Steel track and rubber crawler pads are optional.</li>
    </ul></li>
  </ul>

Easy-To-Maintain Undercarriage

With Approved Credit From John Deere Financial

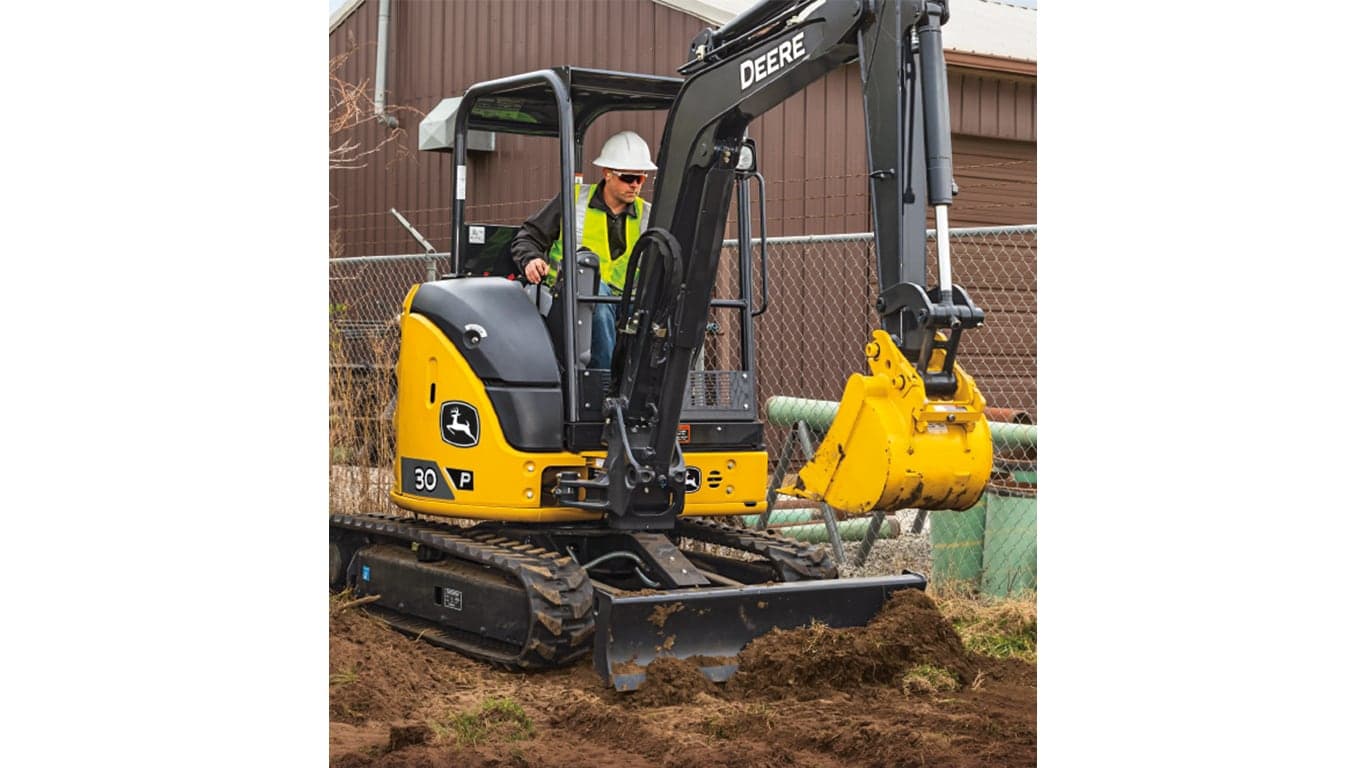

An operator using a 30P-Tier Excavator to move dirt at a worksite with a fence and brown building in the background.

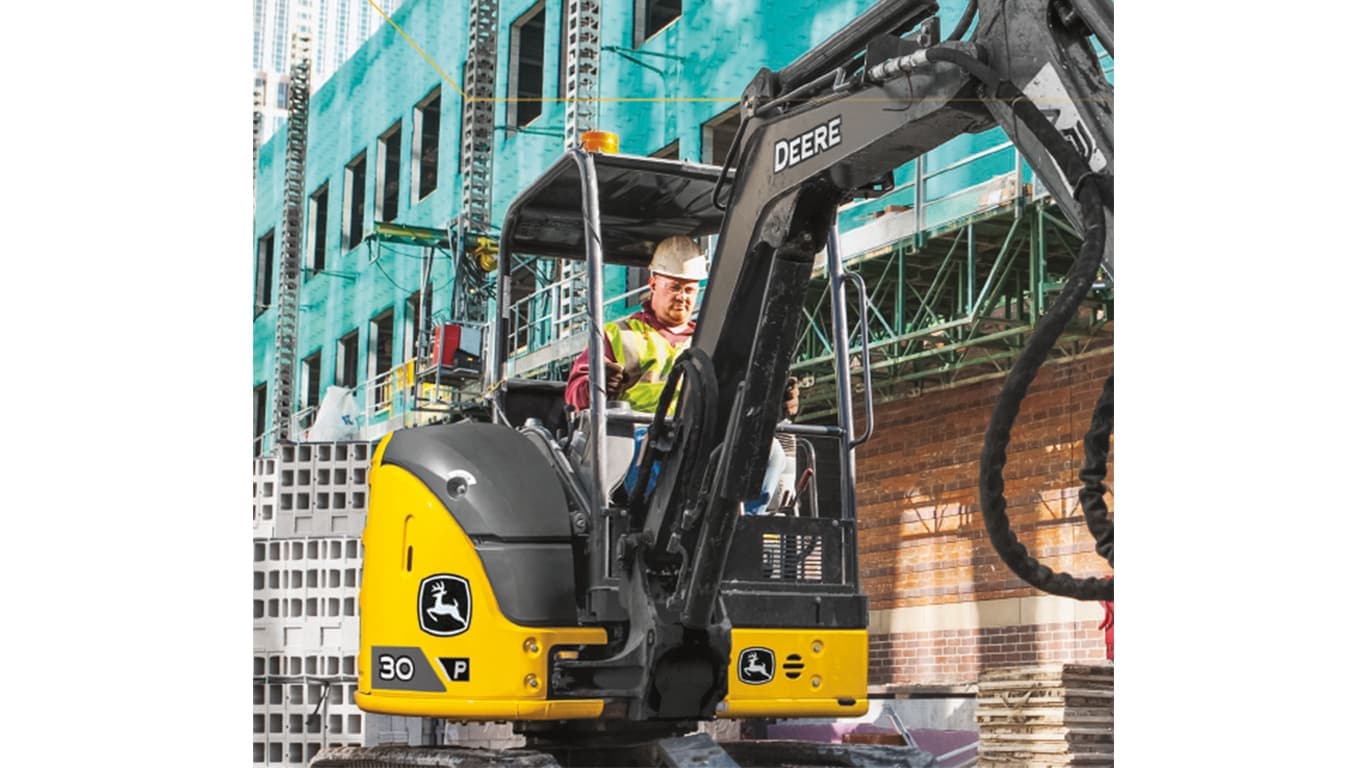

A close-up of an operator using a 30P-Tier Excavator at a worksite with buildings under construction in the background.

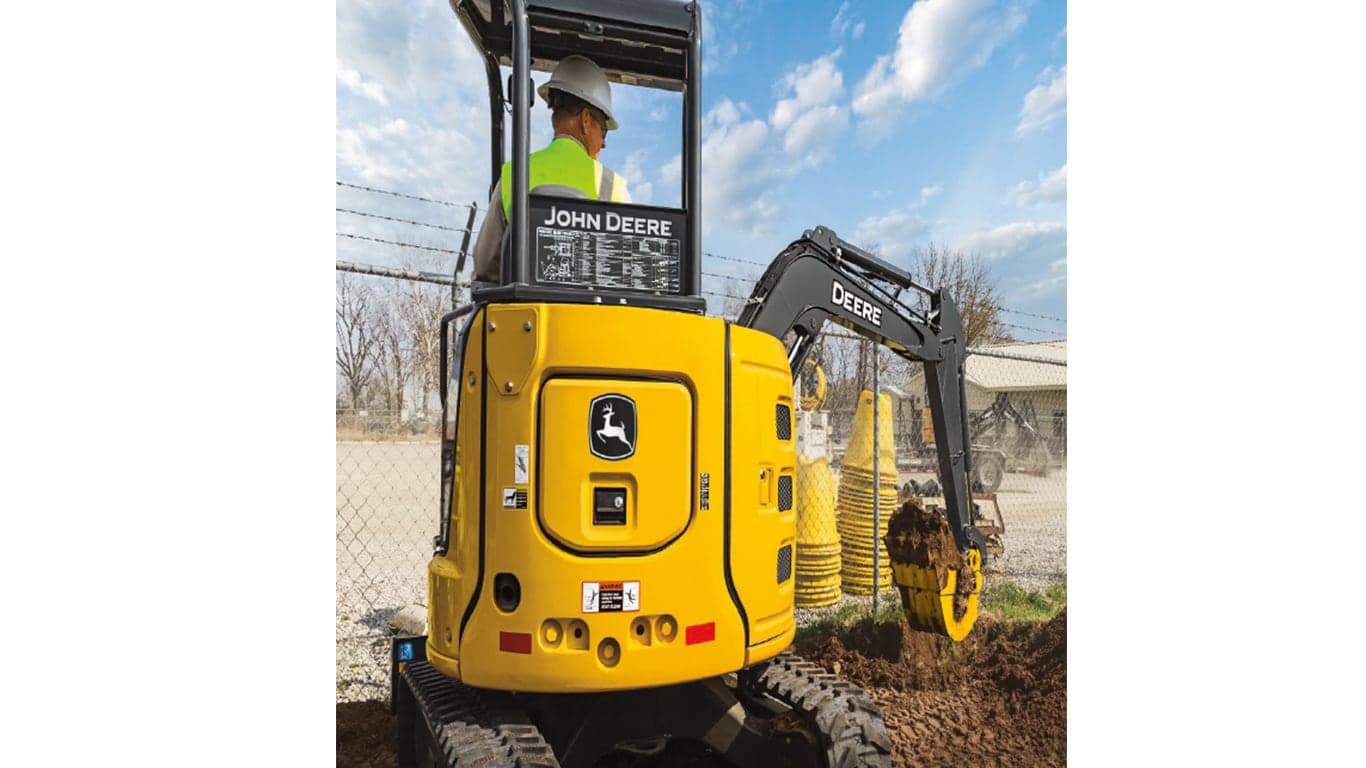

The backside of a 30P-Tier Excavator scooping dirt from a pile to the right of the machine.

4Rivers Equipment compact construction, John Deere, 30 P Tier, Mini Excavator,

4Rivers Equipment | compact construction | John Deere | 30 P Tier Mini Excavator

DRIVELINE

Engine Manufacturer

Number Of Cylinders

Displacement, ltr (Inches³)

Rated speed, rpm

Engine Output - Net, kW (hp)

Number Of Carrier Rollers - Each Side

Number Of Track Rollers - Each Side

Track Shoe Width, mm (inches)

DIMENSIONS

Transport Length Mono Boom, mm (ft/in)

Transport Height - Maximum, mm (ft/in)

Overall Undercarriage Width, mm (ft/in)

Track Length On Ground, mm (ft/in)

Overall Undercarriage Length, mm (ft/in)

Tailswing Radius, mm (ft/in)

Ground Clearance, mm (inches)

Dozer Blade Height, mm (inches)

Dozer Blade Width, mm (ft/in)

Width over fixed tracks, mm (ft/in)

Digging Reach - Mono Boom, mm (ft/in)

Dig Height - Mono Boom, mm (ft/in)

Dump Height - Mono Boom, mm (ft/in)

Dig Depth - Mono Boom, mm (ft/in)

CAPACITIES

Fuel Tank, ltr (gallons (US))

Hydraulic Tank, ltr (gallons (US))

PERFORMANCE

Ground Bearing Pressure, kPa (PSI)

Swing Speed, rpm

Travel Speed - High, kph (mph)

Total Flow, lt/min (gallons (US) / min)

WEIGHTS

Operating Weight, kg (lbs)
