Name: John Deere- 410 P-Tier
Brand: John Deere
SKU: 410PADT

The 410 P-Tier ADT’s purpose-built powertrain has an FT4 engine and heavy-duty axles. Download specs, build your own dump truck, compare competitors and view brochures.

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/backhoes/310_sl/310_sl_economy_mode_450x255.jpg" alt="Eco Mode">
    <span class="caption">Eco Mode</span>
   </div>
  </div>
  <h5>Overview</h5>
  <div class="seccion-images"></div>
  <p>Reduced weight combined with 3 drive modes on 410 P and 460 P deliver improved fuel efficiency over the E-Series.</p>
  <h5>Benefits</h5>
  <div class="seccion-images"></div>
  <ul>
   <li>Up to 7 percent* fuel savings compared to E-Series, regardless of drive mode</li>
   <li>Eco mode delivers up to 12 percent fuel savings compared to E-Series normal mode</li>
   <li>When conditions allow, eco drive mode helps reduce fuel consumption by smoothing throttle input, reducing maximum rpm, and optimizing transmission response for those conditions</li>
  </ul>

 Improved Fuel Efficiency

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/articulated_dump_trucks/410_p/drive_mode_picture1_450x250.jpg" alt="#">
   </div>
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/articulated_dump_trucks/410_p/drive_mode_picture2_168x250.jpg" alt="New Drive Modes (Normal, Eco, and Traction)">
    <span class="caption">New Drive Modes (Normal, Eco, and Traction)</span>
   </div>
  </div>
  <h5>Overview</h5>
  <div class="seccion-images"></div>
  <p>Available on 410 P and 460 P models, three new drive modes allow the operator to adapt to their situations and enhance the abilities of the articulated dump truck (ADT) to fit their applications. These new drive modes optimize features such as the automatic differential-lock system to reduce tire wear, improve traction in soft conditions, and reduce axle wear by automatically applying only when needed.&nbsp; Customers will find the new drive modes highly valuable for their ease of use, uptime, and ride quality.</p>
  <h5>Benefits</h5>
  <div class="seccion-images"></div>
  <ul>
   <li>Normal: For typical operation and performance similar to E-Series ADTs</li>
   <li>Eco: When conditions allow, helps reduce fuel consumption by smoothing throttle input, reducing maximum rpm, and optimizing transmission response for those conditions</li>
   <li>Traction: Enhances the ability of the ADT to maintain traction in soft and slippery underfoot conditions by applying additional control to the automated differential-lock system and powertrain</li>
  </ul>

New Drive Modes

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/articulated_dump_trucks/410_p/onboard_feature_picture1_450x396.jpg" alt="Operator settings in the monitor">
    <span class="caption">Operator settings in the monitor</span>
   </div>
  </div>
  <h5>Overview</h5>
  <div class="seccion-images"></div>
  <p>There are multiple owner and operator settings for features available in the monitor.&nbsp; Intuitive to use and easy to adjust, these features eliminate some of the operator inputs, allowing them to focus on more on moving more material efficiently. The best part is that all these features are standard on John&nbsp;Deere articulated dump truck (ADT).</p>
  <h5>Benefits</h5>
  <div class="seccion-images"></div>
  <ul>
   <li>Rollover protection - Alerts the operator to a potential unsafe dump angle and stops the dump cycle. Set at 15 percent from the factory this setting can also be user defined by accessing the owner setting in the monitor.</li>
   <li>Downhill dump protection - Automatically calculates the truck position to make sure the dump body doesn’t travel over-center when dumping downhill.</li>
   <li>Auto dump brake - With auto dump brake enabled and driveline assist active, the service brakes will latch when unloading the machine.</li>
   <li>Hill hold - When stopping on an uphill slope, the truck will automatically keep the service brakes applied while the operator moves their foot from the brake pedal to the throttle to keep the truck from rolling backward.</li>
   <li>Frame protection - If a dump is stopped before material is shed out of the bin, the truck will cushion the bin travel back to cradle to prevent a full bin from aggressively seating onto the frame.</li>
   <li>Shuttle shifting - The transmission may be shifted direction without the truck coming to a stop improving cycle times and eliminating operator abuse</li>
   <li>Descent control - When activated by the operator, this setting will help automatically control the truck speed when driving down a descent through automatic use of the transmission retarder. Check decal on window for speed and gear limitations.</li>
   <li>Dump body limits - The maximum dump height can be restricted from full dump when working around low overhead obstacles.</li>
   <li>Transmission warm-up - At truck start up, the transmission will automatically begin a warm-up cycle. This improves not only ride and shift quality but also increases daily productivity by getting the transmission up to operating temperature quickly.</li>
   <li>Speed limits – Max speed limit can be set in the monitor to match jobsite conditions or site requirements, reducing complexity for the operator.</li>
  </ul>

Standard Onboard Features to Help Ease Operation

<div class="seccion-images">
   <div>
    <img src="https://salesmanual.deere.com/sales/salesmanual/images/NA/construction/articulated_dump_trucks/410_p/redesigned_dump_body_picture1_450x300.jpg" alt="460 E-II dumping dirt into a pile">
    <span class="caption">460 E-II dumping dirt into a pile</span>
   </div>
  </div>
  <h5>Overview</h5>
  <div class="seccion-images"></div>
  <p>A completely redesigned dump body allows for improved material retention, lower loading height, lower center of gravity, and reduced transport width. Quarry and Aggregate customers will value the bin redesign and lower overall dump-body height (for easier loading and better material retention) for its increased uptime and cycle times.</p>
  <h5>Benefits</h5>
  <div class="seccion-images"></div>
  <ul>
   <li>Wider bin for better tire coverage and easier target while bench loading with an excavator</li>
   <li>New side-sheet design makes loading height the same from front to back</li>
   <li>Bin rail now features angled top, helping to reduce material spillage during travel</li>
   <li>Tailgate arms have been redesigned to maintain a transport width under 3.7 m (12 ft) (460 E-II &amp; 460 P-Tier - 3.5 m (11 ft 7 in.))</li>
   <li>Changes to the headboard offer increased coverage of the articulation joint</li>
   <li>Lower center of gravity to improve stability</li>
   <li>Uniform bin floor width improves ease of cleanout</li>
  </ul>

Redesigned Dump Body

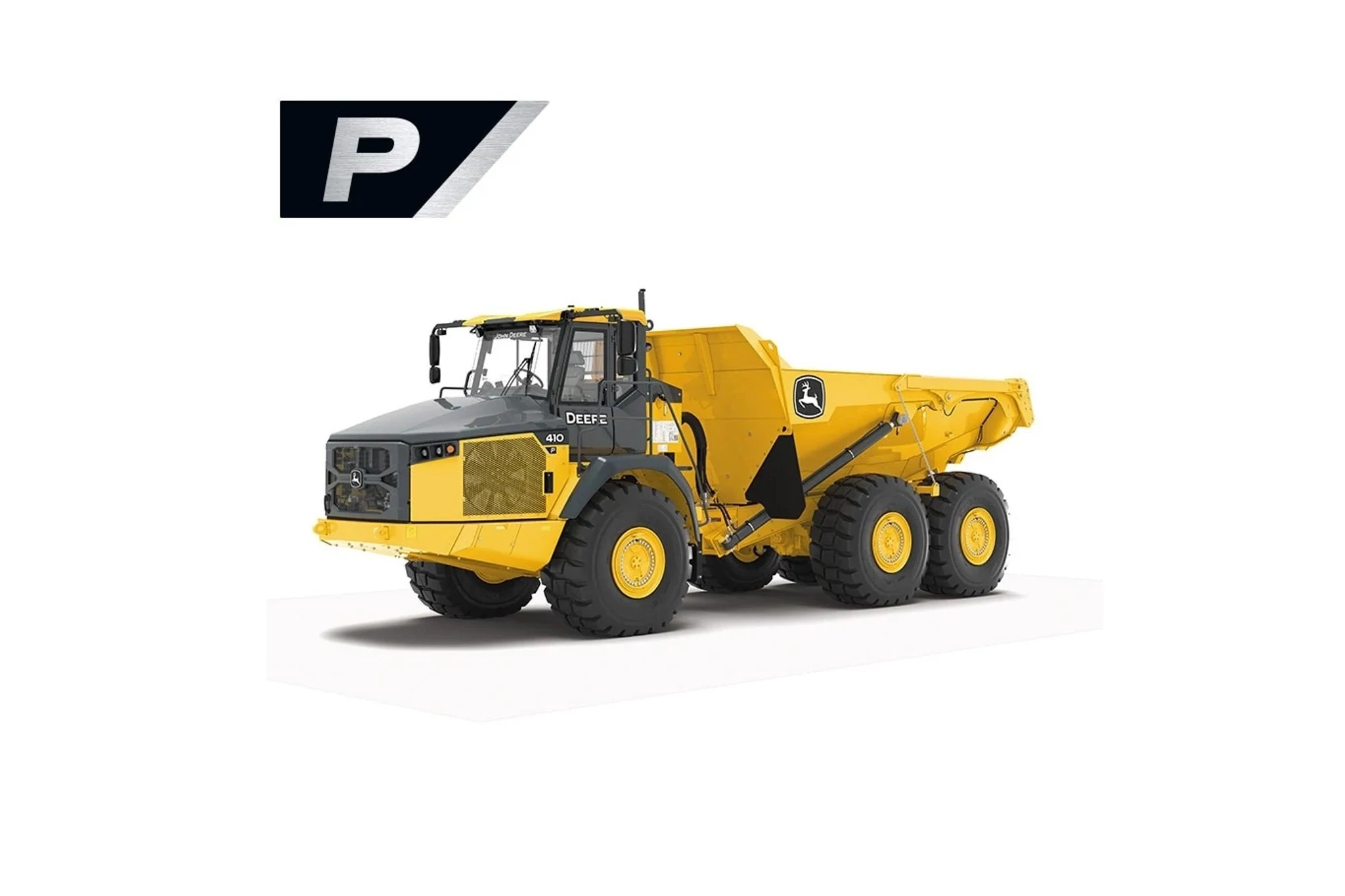

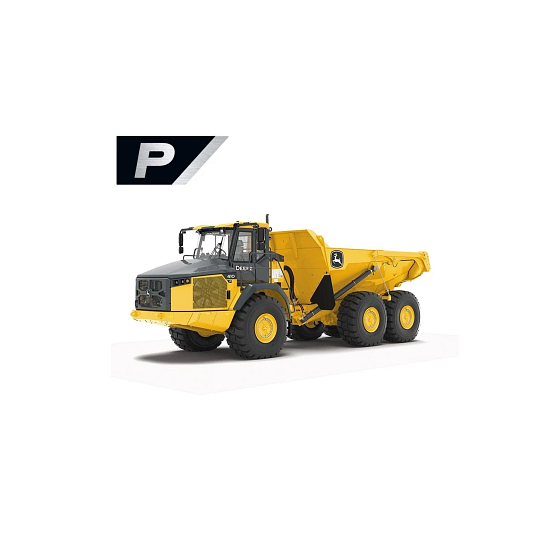

Studio image of 410 P-Tier Articulated Dump Truck

Close-up front view of the 410P Articulated Dump Truck.

A 410P Articulated Dump Truck waiting to be loaded with dirt from a nearby excavator.

4Rivers Equipment construction, John Deere, 410 P Tier, Articulated Trucks,

4Rivers Equipment | construction | John Deere | 410 P Tier Articulated Trucks

DESCRIPTION

Telematics Available

DRIVELINE

Engine Manufacturer

Engine Model

Displacement, ltr (Inches³)

Rated Speed, rpm

Engine Output - Net, kW (hp)

Final Drive

Transmission Type

Steering Type

Secondary Steering Type

Differential Lock

Tire size - Standard

Front Suspension - Type

Front Suspension

Rear Suspension - Type

Rear Suspension

Service Brake - Actuation

Parking Brake - Type

Retarder - Type

DIMENSIONS

Length - Overall, mm (ft/in)

Height - Max, mm (ft/in)

Width over Tires, mm (ft/in)

Hoist - Type

Power Down

Approach Angle, Degrees

Articulation Angle, ± Degrees

Turning Radius - Outside, mm (ft/in)

Turning Radius - Inside, mm (ft/in)

Turns lock to lock

CAPACITIES

Fuel Tank, ltr (gallons (US))

Struck Capacity, m³ (yd³)

Heaped Capacity, m³ (yd³)

PERFORMANCE

Gears - Forward / Reverse

WEIGHTS

Net Weight, kg (lbs)

Payload, kg (lbs)

Gross Weight, kg (lbs)
